Part descriptions
| Part | Description | Image |
|---|---|---|
4'' Ground Anchor | ||
Copper swage sleeve | ||
Stainless Steel Carabiner - M6 | ||
Galvenized Steel Eye to Eye Turnbuckles - 5" | ||
Stainless Steel Wire Rope - 3/32" | ||
Stainless Steel Wire Rope Thimble - M3 | ||
Battery (AGM, ~100 Ah) | ||
Battery (AGM, ~50 Ah) | ||
Battery (LiFePo, ~100 Ah) | ||
Charge Controller (SS-10L-12V) | ||
Fused Battery Leads | ||
Mounting hardware to attach solar panel | ||
Solar Panel (160 Watts) | ||
Solar Panel (80 Watts) | ||
Spade Terminal Connectors | ||
Solar panel wiring harness (MC4) | ||
Aluminum angle iron (units in feet) | ||
Nylon washer - 5/16" | ||
Stainless steel hex bolt - 7/16" (head), 1" (length) | ||

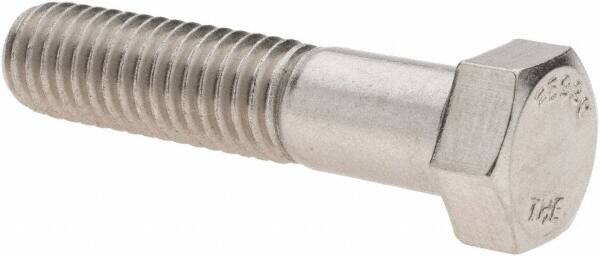

Stainless steel hex bolt - 7/16" (head), 2" (length) | ||
Stainless steel lock washer - 5/16" | ||

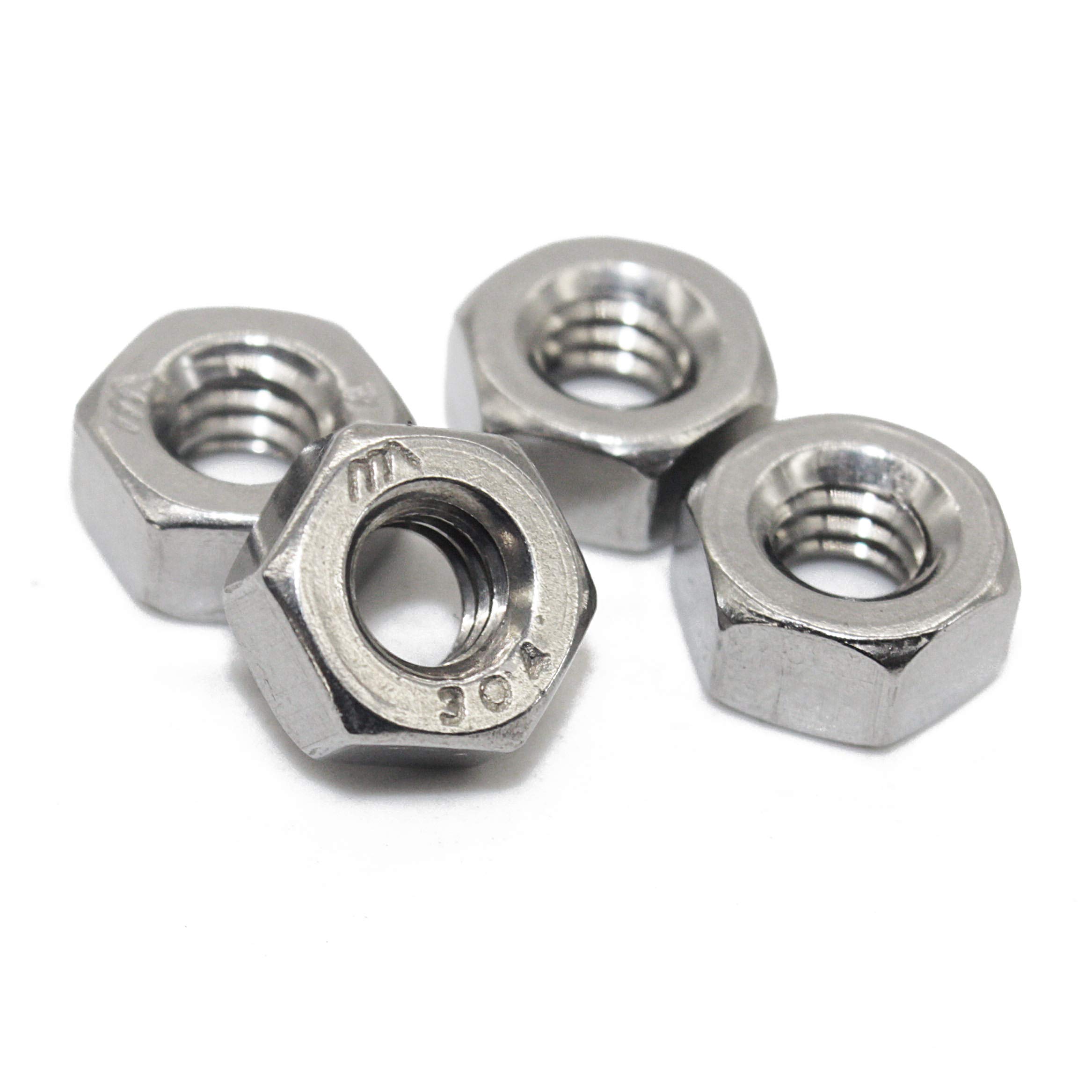

Stainless steel nuts - 7/16" | ||

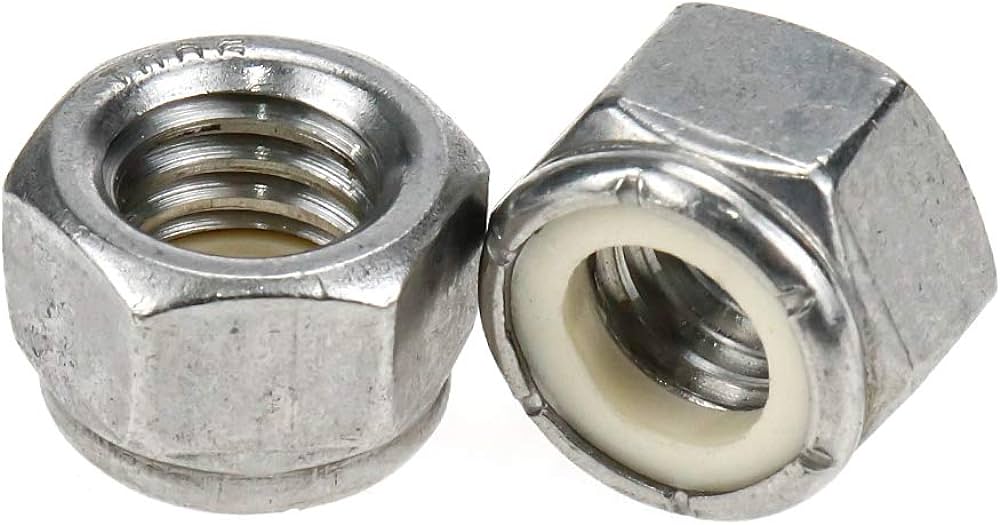

Stainless steel lock nuts - 7/16" | ||
Stainless steel washer - 5/16" | ||
Pipe Bushing | ||
Pipe Elbow | ||

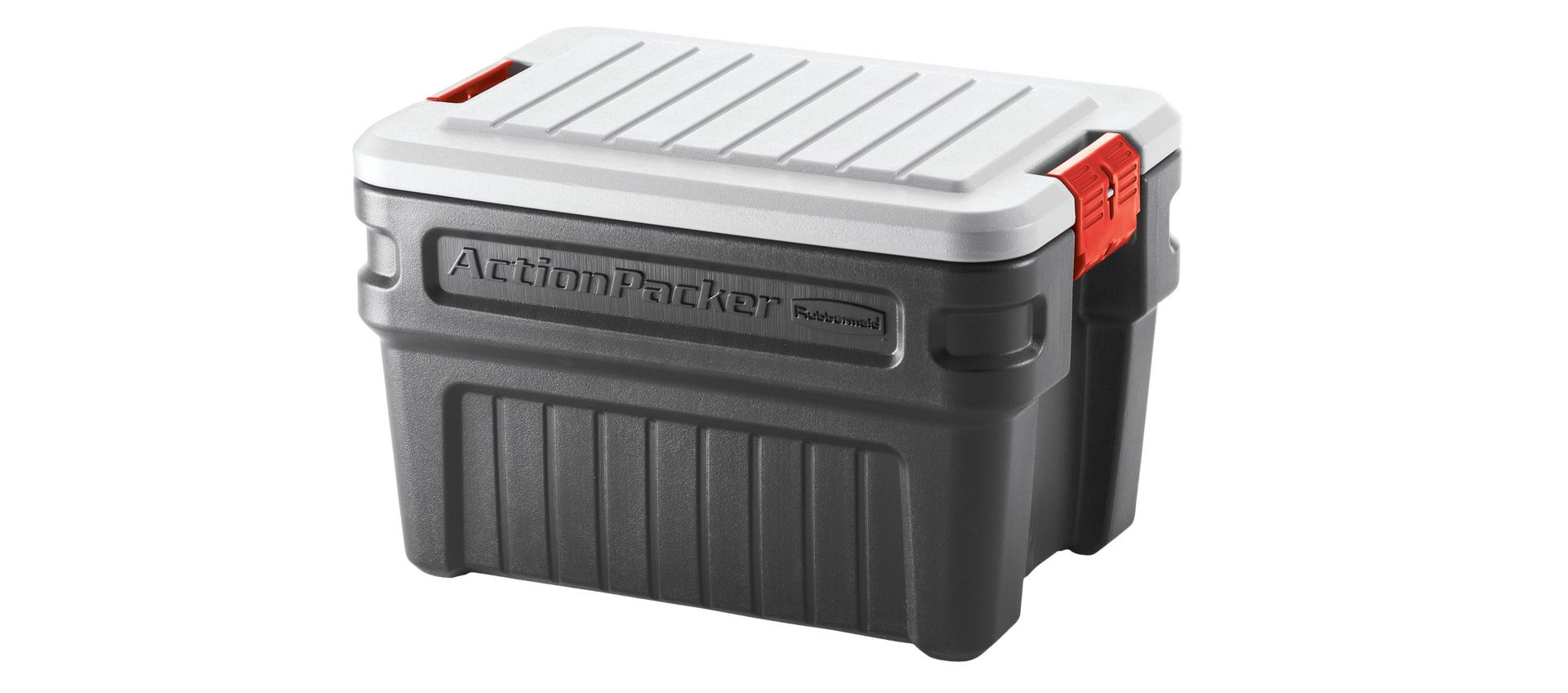

Storage bin (Action Packer) | ||

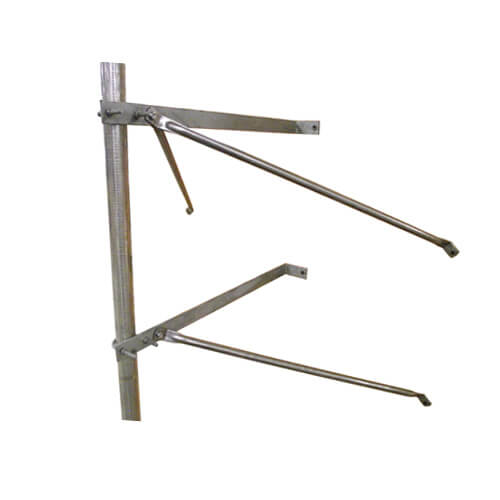

Mast Wall mount - 24-inch | ||
Golden nugget bracketed tower section (16-gauge) | ||
DMX 32-Foot Medium Duty Self-Supporting Tower | ||
DMX 48-Foot Heavy Duty Self-Supporting Tower | ||
Base plate (BP-125) | ||
Base plate (DMXB) | ||
Base plate (GNBP) | ||

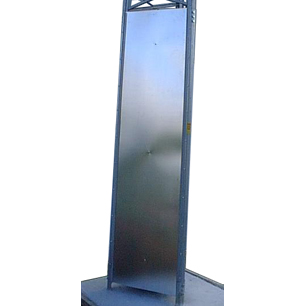

Climbing guard (DMX section 6) | ||
Climbing guard (DMX section 4) | ||
Climbing guard (CS-GN) | ||
Concrete slab | ||
DMX Concrete Base Stubs (CBS-04) | ||
DMX Concrete Base Stubs (CBS-05) | ||
DMX Concrete Base Stubs (CBS-08) | ||
Drive stakes (DMBS) | ||

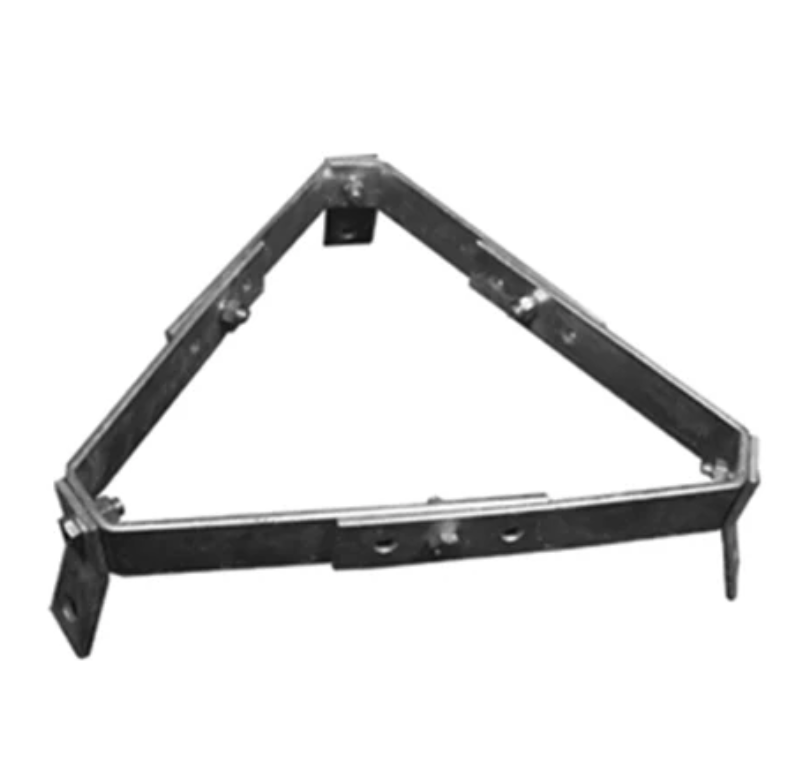

Guy stations (GS-GN) | ||

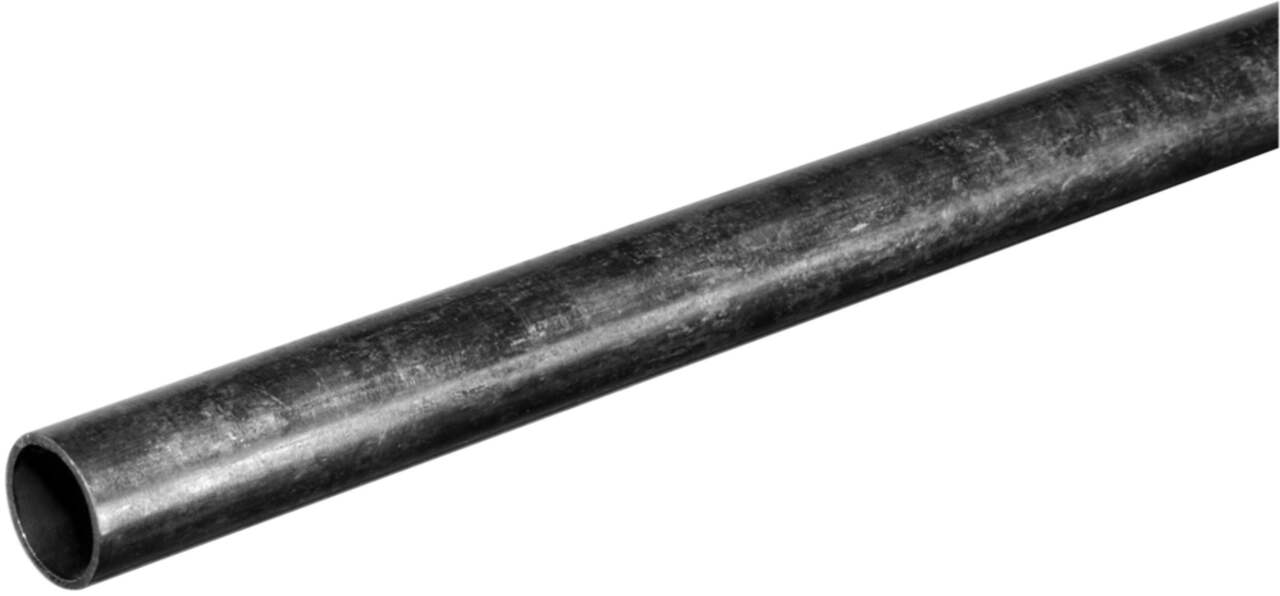

Mast - 40A | ||
Masting (DM Mast) | ||
Top kit (244A) | ||
Tripod | ||
Universal house Brackets (GNHB) | ||
VMOT-3NF Antenna Assembly | ||

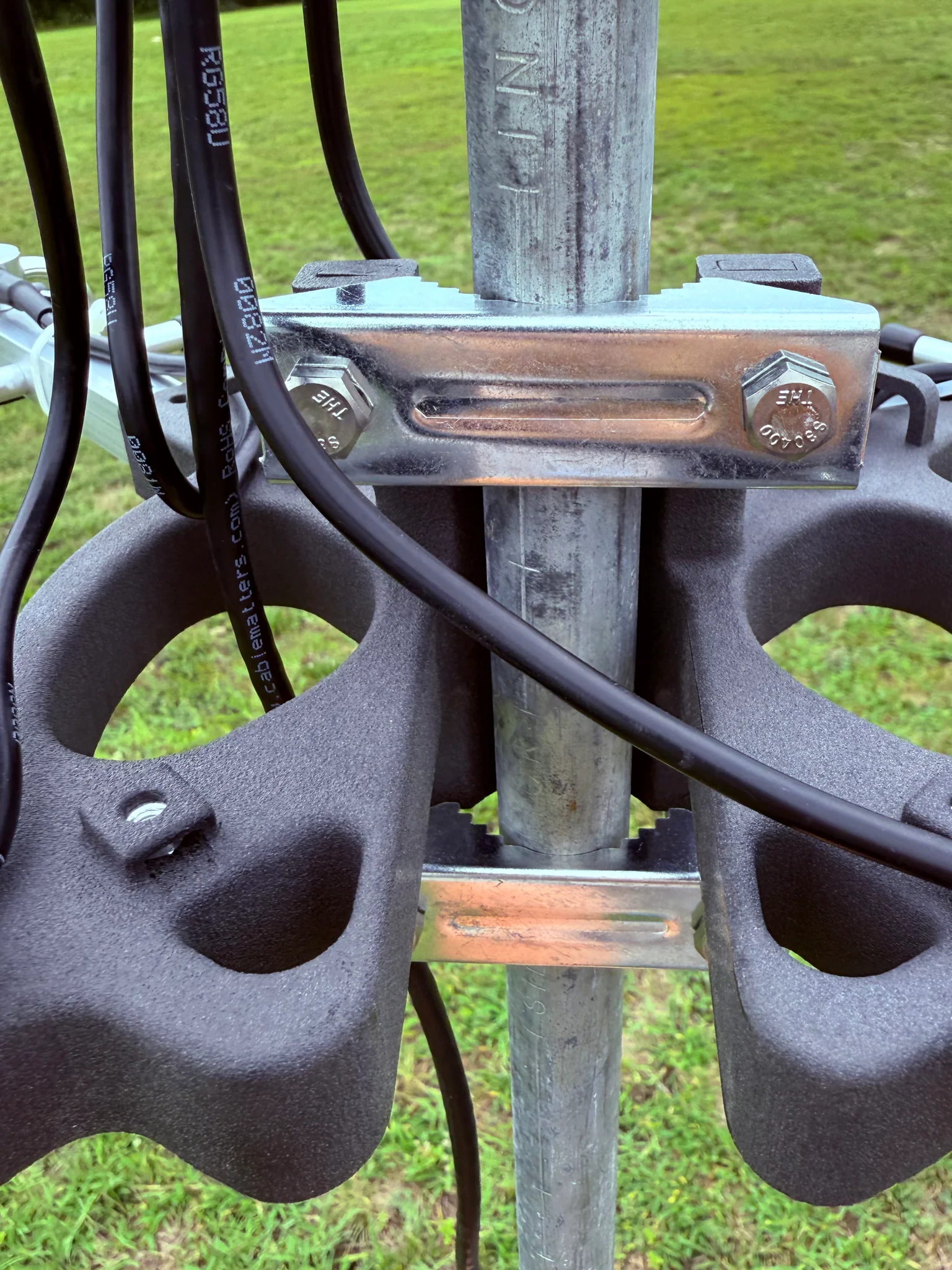

Vertical Mounting Bracket for J166R-NF, 1.0" to 2.0" | ||
FUNcube Dongle ProPlus | ||
USB A Extender (6") | ||
SMA male to N female bulkhead - 15 or 30 cm | ||
N-type dust cap | ||
9E166-NF 9-element Yagi antenna | ||
Pre-existing tower structure | ||
Laird YS4306 | ||
JU400-40NM-NM Coax jumper - 40' long N-male to N-male | ||
RPi 4B (2 GB, 4 GB, 8 GB) | ||
Terminal block (2-position) | ||
16 AWG ring terminal connector | ||

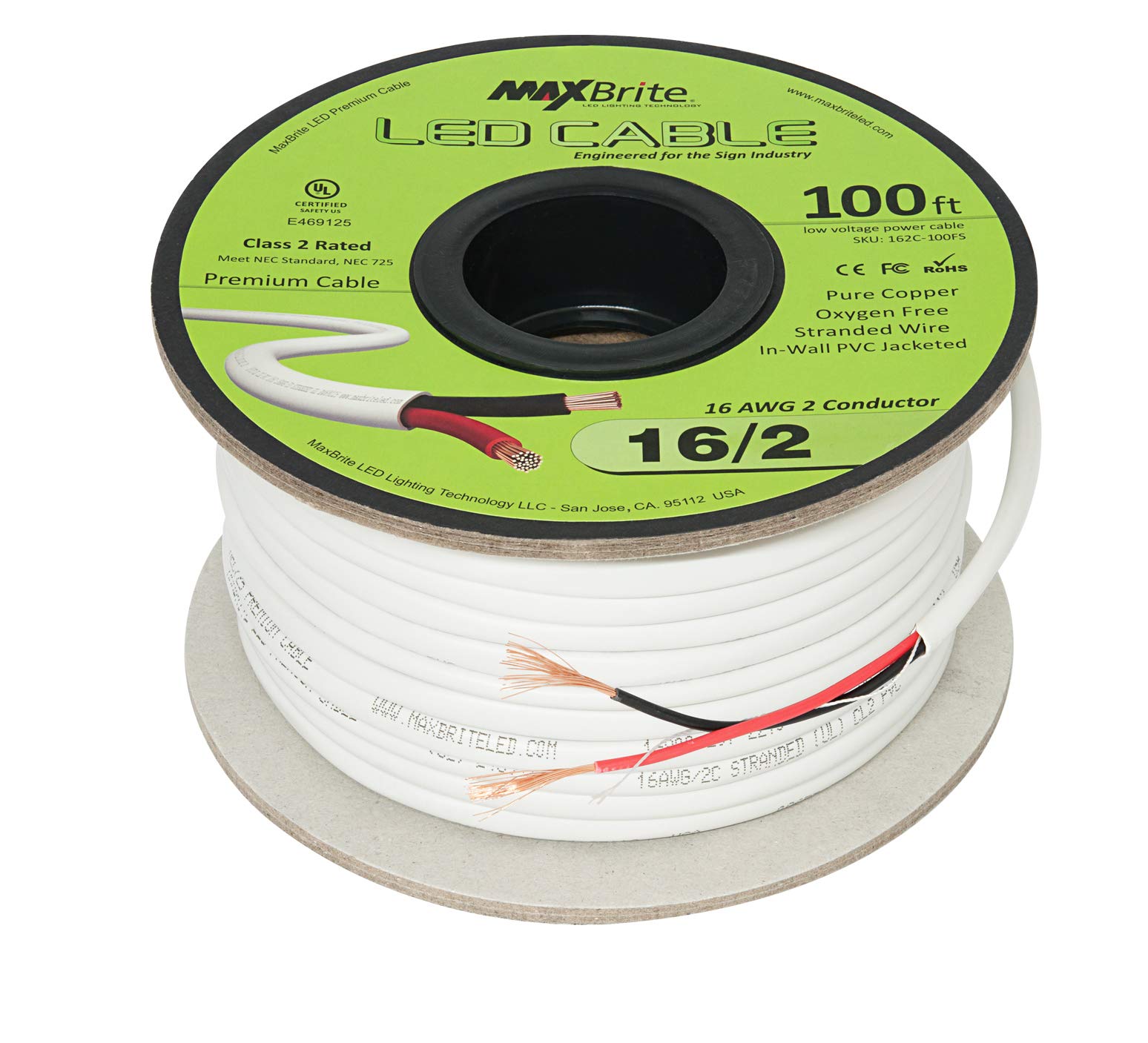

16 AWG, 2-conductor wiring (100 feet) | ||
USB A to USB micro B | ||
USB A inline switch | ||
USB-A DC-DC buck converter (3 A) | ||
Adafruit GPS Hat | ||
Pelican Case - Protector 1150 | ||
Pelican Case - Protector 1400 | ||
Adafruit Feather with SMA (RFM69HCW 433 MHz) | ||
RPi 4G/LTE Cellular Modem Kit - EG25-G (Global) | ||
SensorStation (Wi-Fi) | ||
NEMA Case (NBF-32318) | ||
SensorStation (Cellular) | ||
SensorStation | ||
Cellular data for SensorGnome (SixFab; monthly) | ||
Cellular data for SensorStation (CTT; monthly) | ||
Iridium data for SensorStation (CTT; monthly) | ||
AC Power supply for Raspberry Pi 3 (Micro USB) | ||
AC Power supply for SensorStation | ||
36-Foot Standard Duty Self-Supporting Tower | ||

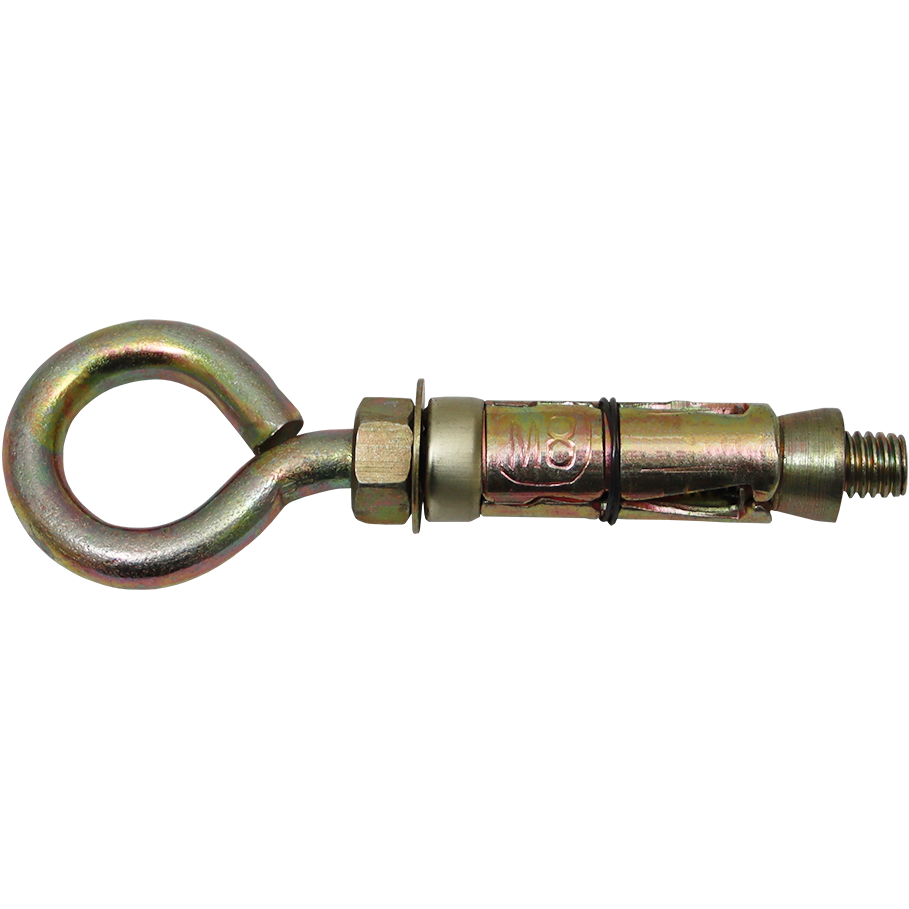

Expansion eye bolts | ||
Wedge anchor (5/8" x 4 1/2") | ||
Large washer (11/16" ID x 1 1/2" OD) | ||
Solar Charge Controller for LiFePo4 | ||
Raspberry Pi 4 case | ||
USB A to USB C | ||
Solar Panel pole mount | ||
GPS antenna | ||
SMA to U.fl | ||
CR1220 battery for GPS Hat | ||
Dual port USB wall adapter | ||
Recessed waterproof AC outlet | ||

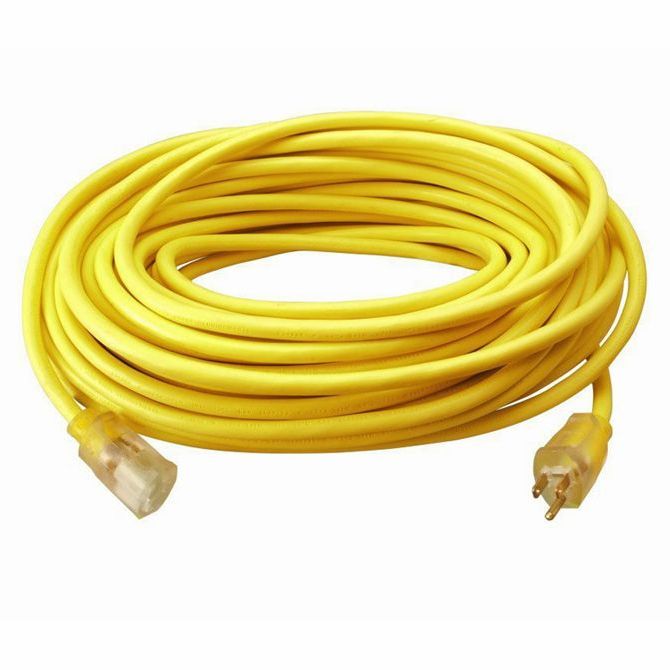

50-foot 12-gauge, 3-conductor heavy duty outdoor AC extension cable | ||
PG13.5 cable gland | ||
Galvenized Steel Jaw to Jaw Turnbuckles - 4.5" | ||
Stainless Steel Quick Links (3/16") | ||
Laird PLC1996 | ||
AC Power supply (USB-C; SensorGnome) | ||
Yellow Split Wire Loom Tubing | ||
Duct Seal | ||
Spray Foam | ||
Reflective thermal insulation | ||
Foam board insulation | ||
Aluminum Tape | ||

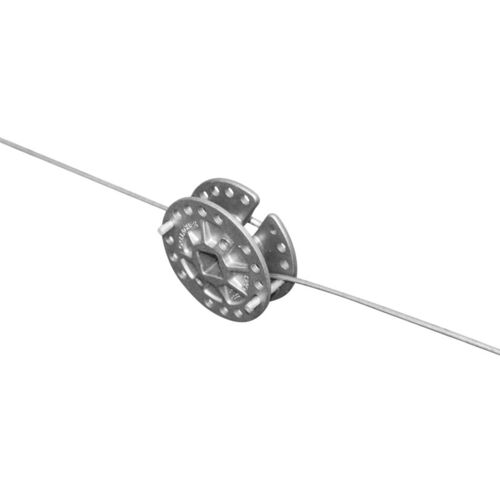

In-line wire tensioner | ||

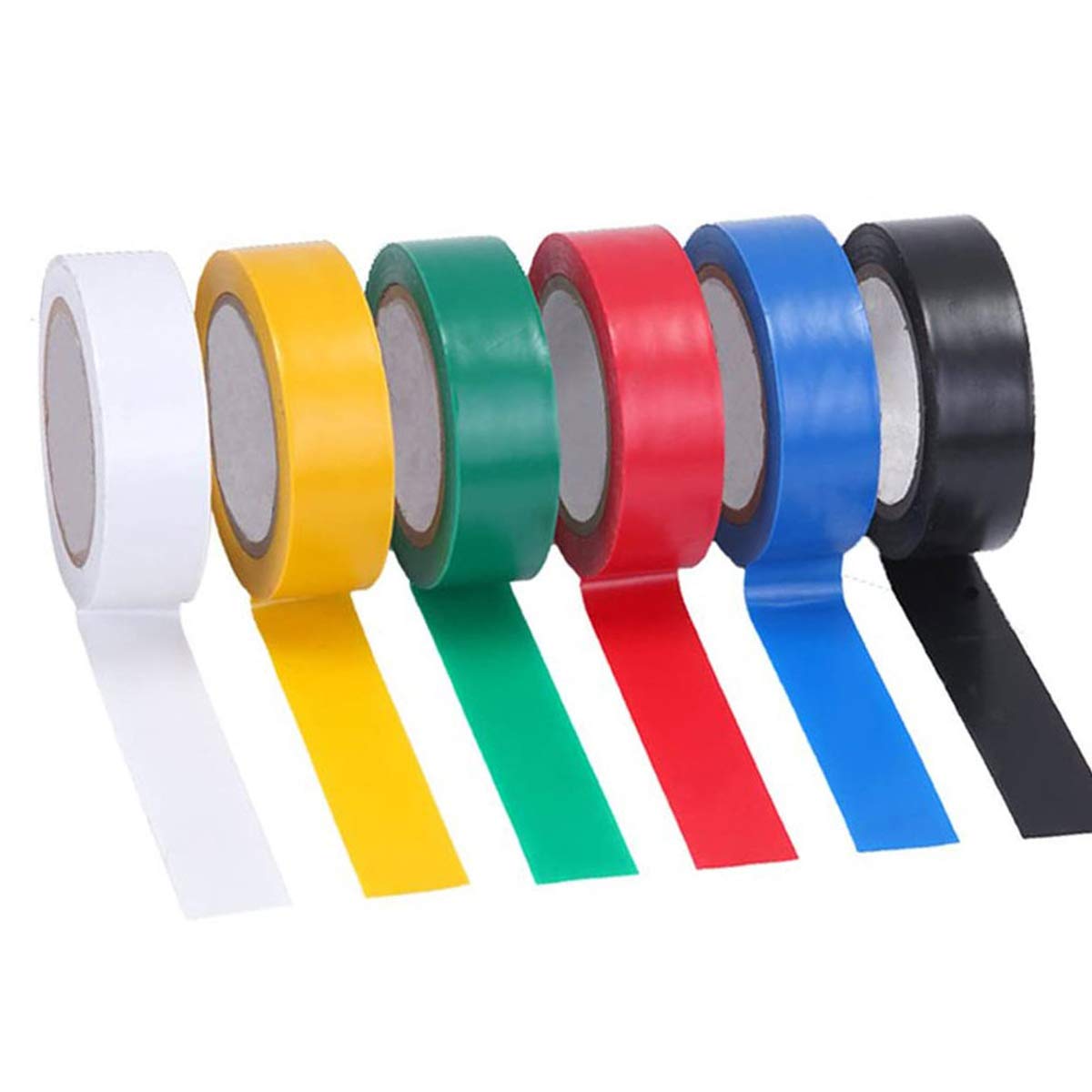

Electrical tape | ||
Cable ties | ||
Cable tie mount | ||
Self-tapping screws (#10 x 3/4") | ||
Deck screws (treated wood) | ||
Lag bolts (3/8" x 3 1/2") | ||
Metal roofing screws (1 1/2") | ||
Cable guides | ||
Conduit clips (1") | ||

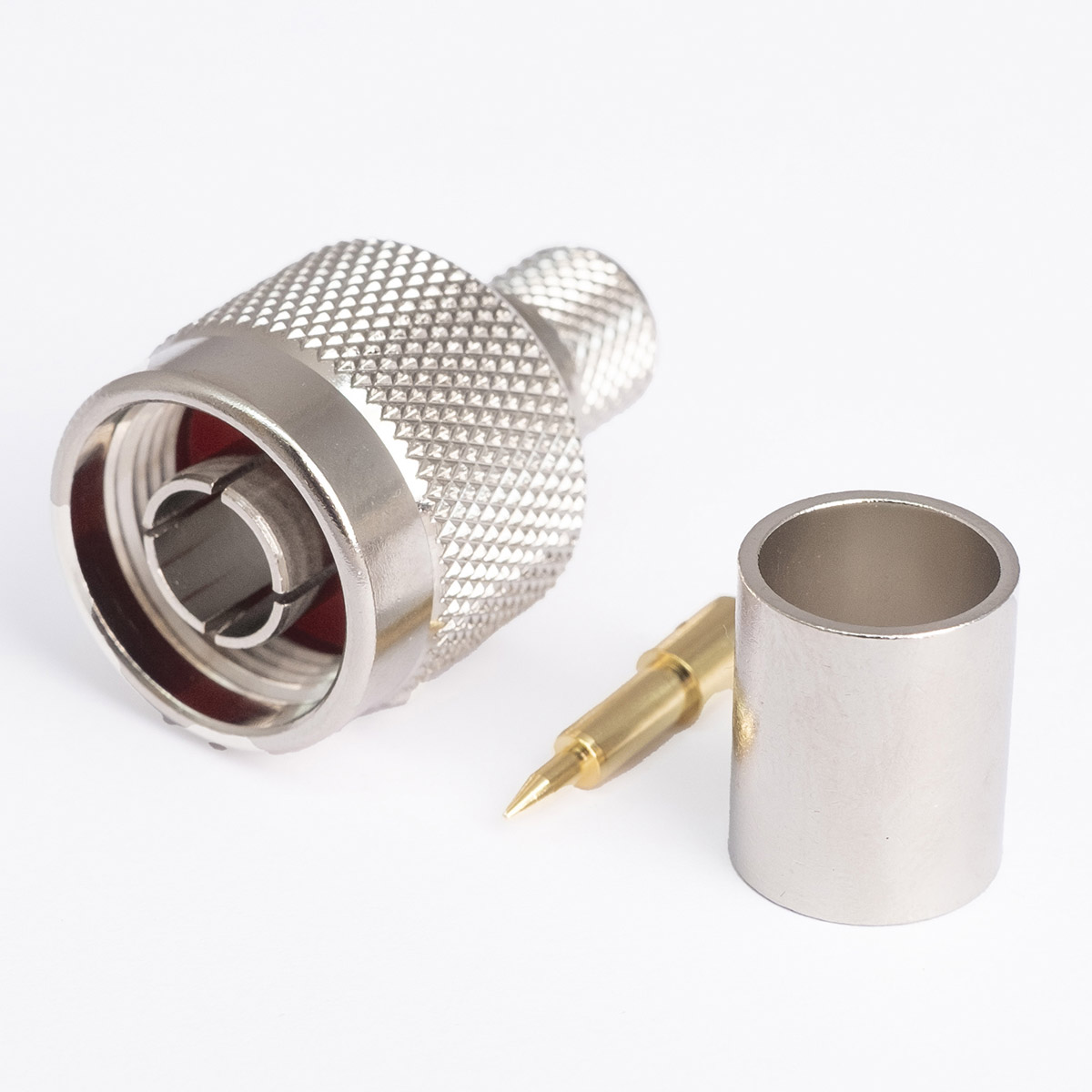

Type N male crimp connectors for LMR 400 | ||

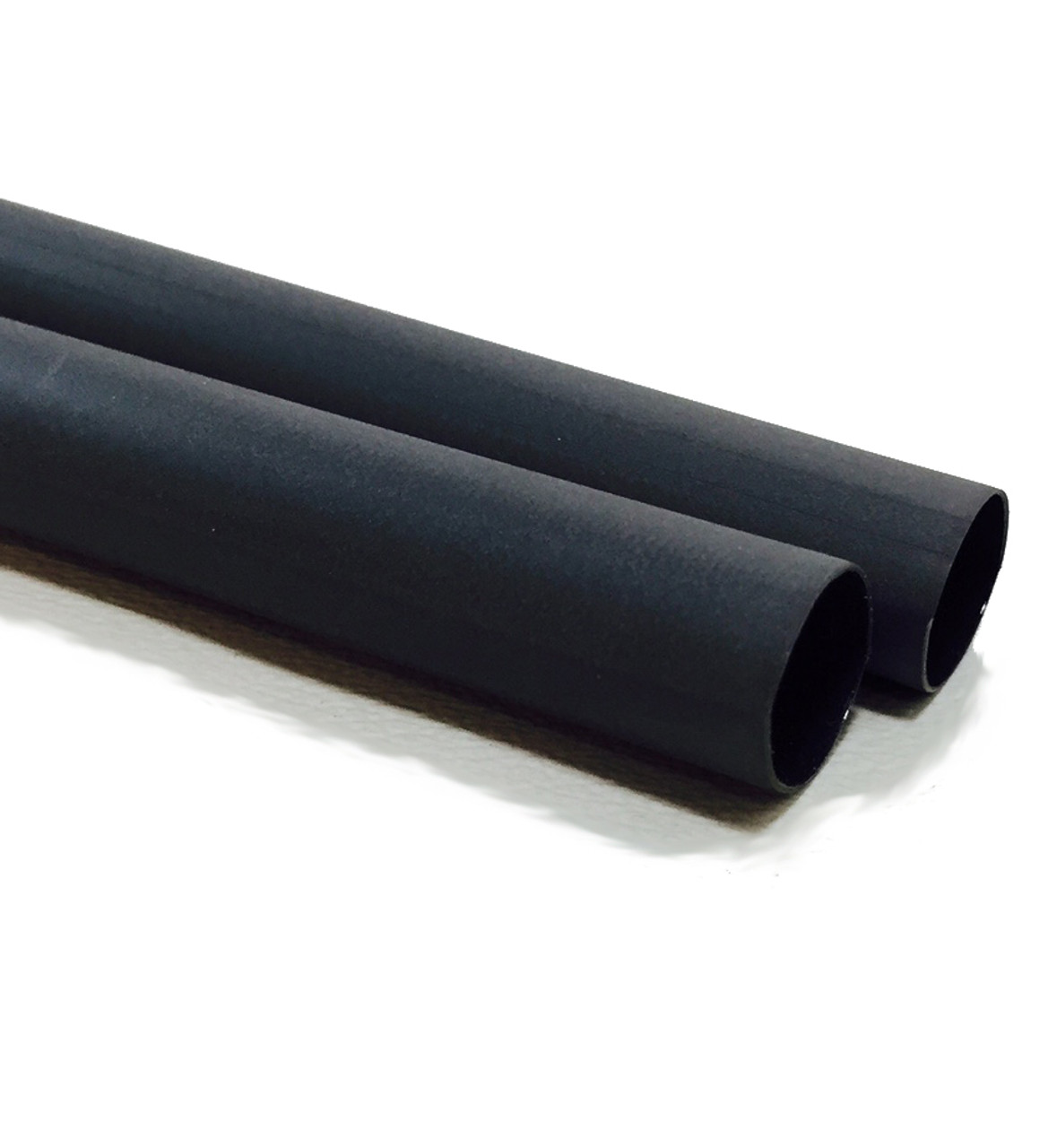

Heat shrink tubing | ||
Wi-Fi Repeater | ||
Wi-Fi Long Range Extender |
